Download Spear Plans (Templates/.DXF)

This option is for those who want to build from plans. Full size printable paper templates as well as .DXF files are included in the download.

The digital plans and files include:

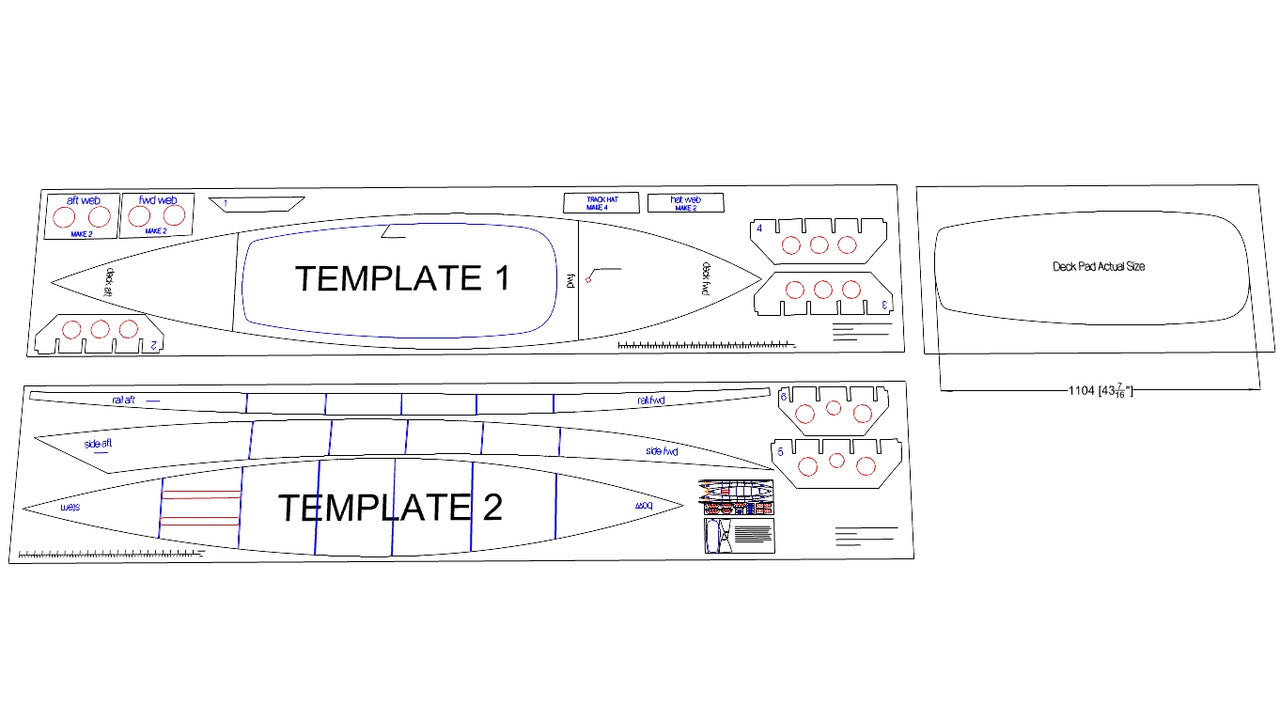

-Full size paper templates for printing out the parts in full size. Templates are 24" x 120".

-Step by step construction guide

-A DXF FILE with all parts ready for nesting and CNC cutting. (PERSONAL USE ONLY)

-------------------------------------------

Specs: 8' 2" x 19 1/2" x 110L (finished weight ~14 1/2 lbs)

Materials List

View the complete build album here

As seen on "boards and hydrofoil building" facebook group LINK

About the Construction:



First Ride. It's awesome.
