Core Sound 17 Mark 3 Plans
Core Sound 17 Mark 3 Plans
Couldn't load pickup availability
Particulars:
LOA………17′-0″ [5.2] m
BEAM………5′-101⁄2” [1.79] m
DRAFT………8″ to 2′-10″ [0.20 to 0.86]m @ DWL
SAIL Area………141 sq. ft.
WEIGHT………600-650 lbs [272-295]kg
WATER BALLAST…… 300lbs [136 kg] *DISPLACEMENT……1300 lbs (589 kg) @ DWL
*@DWL With people water ballast and gear

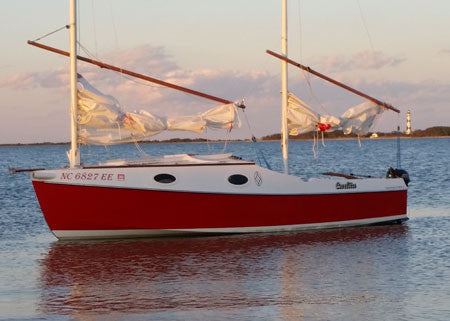

Following the development of the Core Sound 20 Mark 3 it seemed only fair that there should be an equally capable companion to the Core Sound 17. The CS-17 Mk3 offers the same design features as her bigger sister in a more economical package that can be towed easily by a compact car. A generous solo cruiser or weekend explorer, the 17 Mark 3 is the envy of all weekend adventurers and expedition racers.
A generous sail plan and low center of effort.
CS-17 Mark 3 “kit parts” shown above.
Available as a kit!
We have painstakingly designed the 17 and 20 Mark 3 kit’s to be built without any special techniques so that they remain within reach for the working boat builder.
"Great work on the design and CNC skills by the way, I'll never cut out another part again! Most fun I've had building a boat."
Designer’s Choice
Race History:
2017: Graham is currently on his way south sailing to the start of the 2017 Everglades Challenge.
2016: Graham Byrnes took first place in his class in his new CS 17 Mk3 in the 2016 Everglades Challenge. Race results.
Click below to go the construction Photo Gallery
Construction Plans:
Assembly Manual: $35
A newly updated 48 page step by step document that details all aspects of construction! If you’ve downloaded an previous version of our assembly manual just let us know and we’ll email you the updated version.
The current version of the manual can be purchased on our downloads page note that it will be manually emailed so please allow 24 hours for receipt. If you end up purchasing a complete set of plans or kit, remind us to credit you the cost of the manual!
Full Size Templates and Construction Plans: $220
The plans set consists of 18 full color 11 x 17 sheets that detail all aspects of construction. Kit parts are labeled in each drawing referencing the kit parts throughout. The deck framing and Main Rigging sheet are available to view as a sample by clicking in the list below. We have taken all of the parts from the CNC kit and nested them in two 21’x24″ strips of mylar sheet that make up the full size templates. The sheets are taped together aligning the strike up marks to produce a templates sheet that can be used to transfer all of the part outlines onto plywood for cutting with a jigsaw. Recommended methods and sheet count are shown in the included detail sheet that accompanies the templates.
Note: This plans pack covers assembly only and does NOT include a lines plan or dimensioned parts. The plan sheets are designed to accompany the full size templates or the CNC cut Kit.
-Cradle assembly
-Main Assembly
–Deck Framing
-Deck Plan
-Bulkhead Detail
-Tabernacle Detail
-Cabin Hatch Assembly
-Cabin Hatch Detail
-Cockpit Hatch
-Rudder Detail
-Centerboard Construction
-Centerboard Rigging
-Spar Detail
-Sail Plan
–Main Rigging
-Mizzen Rigging
-Optional Reefing Detail
-Optional Boomkin (for mounting windvane)
